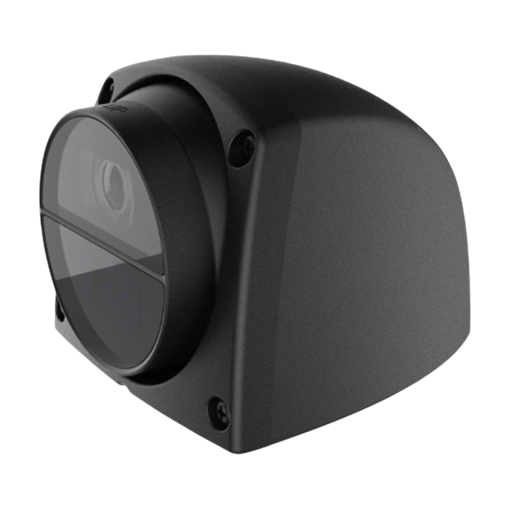

AE-VC224T-IT(2.1mm)

1080P 1/2.9”CMOS infrared array conch analog camera

Adopts progressive scan CMOS to prevent motion image aliasing
Supports HD image coaxial output with1080P resolution
Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
Supports auto electronic shutter to adapt to different monitoring environments
Supports auto electronic gain and self-adaptation to light
Adopts shock-proof design and aviation output plug

SKU: HK-308901353

Overview
Contact Us

Camera
Shutter Speed
1/50 s to 1/50,000 s
Day & Night
Electronic
Lens
Lens Mount
M12
Video
Frame Rate
1080P@25 fps
SNR
42 dB
Interface
Video Output
1 Vpp Composite Output (aviation plug)
Interface Style
1: video, 2: empty, 3: power, 4: ground
Supplement Light Unit
Power Supply
9 to 16 V DC
Power Consumption
Max. 2.5 W
General
Protection
IP68,IP69K,IK10
Camera Dimension
74.7 mm × 65.8 mm × 57.3 mm (2.9" × 2.6" × 2.3")
Startup and Operating Conditions
-40 °C to 75 °C (-40 °F to 167 °F), 90%
