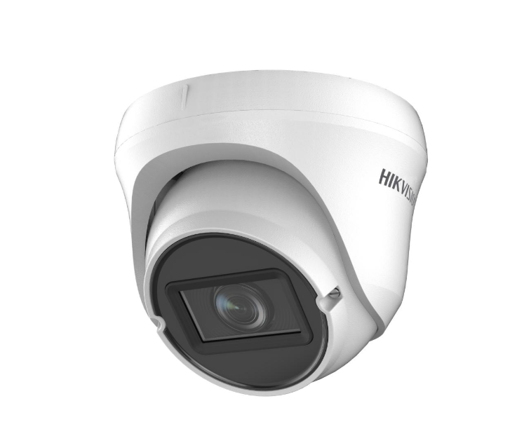

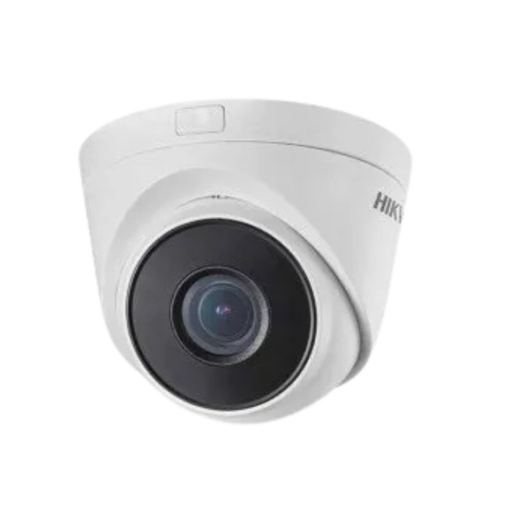

Camera
Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Resolution
1920 (H) × 1080 (V)
Frame Rate
TVI: 1920 × 1080 @ 30 fps, 1920 × 1080 @ 25 fps
AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
Min. Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens
2.7 mm to 13.5 mm varifocal lens
Field of View
Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
Lens Mount
Φ14
Day & Night
ICR
WDR (Wide Dynamic Range)
Digital WDR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Day/Night Mode
Auto/Color/BW (Black and White)
Image Mode
STD/HIGH-SAT
AGC
Yes
White Balance
Auto/Manual
AE (Auto Exposure) Mode
BLC;HLC;Global;DWDR
Noise Reduction
2D DNR
Language
English
Function
Brightness;Sharpness;Smart IR
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
IR Range
Up to 40 m
Operating Conditions
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
Consumption
Max. 5 W
Protection Level
IP67
Material
Main body: Metal, Base&Enclosure: Plastic
Communication
HIKVISION-C
Dimension
Ø 120 mm × 105.1 mm ( Ø 4.72" × 4.16")
Weight
Approx. 440 g (0.97 lb.)
