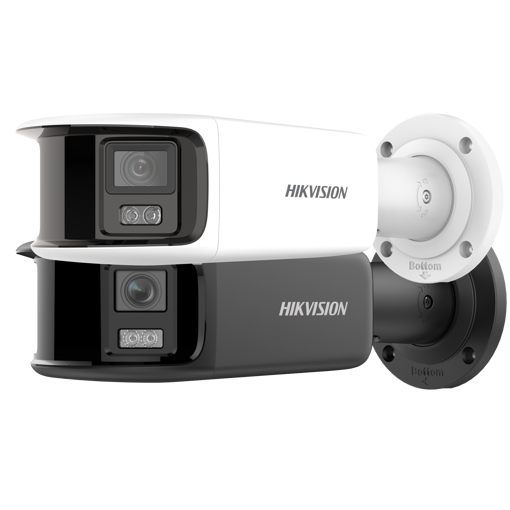

DS-2CD2T87G2P-LSU/SL(4mm)(C)/O-STD/BLACK

High quality imaging with 8 MP resolution

Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Excellent low-light performance with powered-by-DarkFighter technology
Water and dust resistant (IP67)
One image that presents all the scenes covered by the camera
24/7 colorful imaging

SKU: HK-311323807

Overview
Contact Us

Camera

Image Sensor

2 × 1/1.8" Progressive Scan CMOS

Max. Resolution

5120 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, dual lens: 4 mm

Focal Length & FOV

4 mm, horizontal FOV: 180°, vertical FOV: 44°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

3.6 m to ∞

DORI

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

Video

Main Stream

When WDR is On:

50 Hz: 12.5 fps (5120 × 1440)

60 Hz: 15 fps (5120 × 1440)

When WDR is Off:

50 Hz: 20 fps (5120 × 1440)

60 Hz: 20 fps (5120 × 1440)

Sub-Stream

When WDR is On:

50 Hz: 12.5 fps (1920 × 536, 960 × 272)

60 Hz: 15 fps (1920 × 536, 960 × 272)

When WDR is Off:

50 Hz: 20 fps (1920 × 536, 960 × 272)

60 Hz: 20 fps (1920 × 536, 960 × 272)
