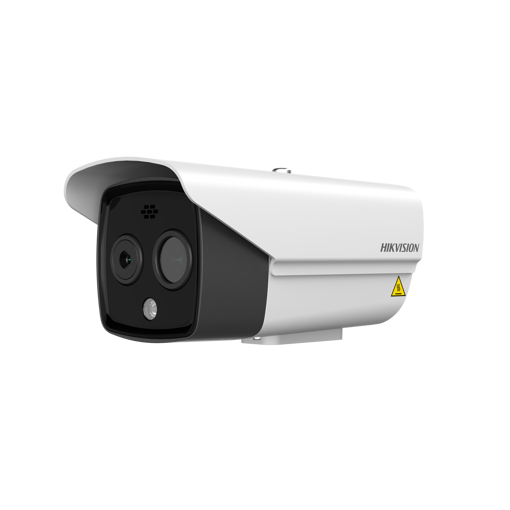

DS-2TD2628-10P/QA/GLT

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)

Video content analysis: vehicle/human classification
Embedded audible alert and strobe light
Built-in 32 GB eMMC storage
High quality detector with 10 years warranty
Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card

SKU: HK-305401844

Overview
Contact Us

Thermal Module

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays

Resolution 256 × 192

Pixel Pitch 12 μm

Spectral Range 8 μm to 14 μm

NETD ≤ 40 mK (@25°C, F# = 1.0)

Focal Length 9.7 mm

Focus Mode Athermalized

IFOV 1.24 mrad

Aperture F1.0

Field of View 18.0° × 13.5° (H × V)

Min. Focusing Distance 1.5 m

Digital Zoom × 2, × 4

Optical Module

Image Sensor 1/2.7" Progressive Scan CMOS

Resolution 2688 × 1520

Min. Illumination 0.0089Lux @(F1.6, AGC ON), 0 Lux with IR

Field of View 39.4°(H) × 22.1°(V)

Focal Length 8 mm

Aperture F1.6

Shutter Speed 1 s to 1/100,000 s

White Balance

MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light

Lamp/Natural Light

Day & Night Mode IR Cut Filter with Auto Switch

WDR 120 dB

Image Effect

Bi-spectrum Image Fusion Display the details of optical channel on thermal channel

Target Coloration Yes. Supported in white hot and black hot mode

Illuminator

IR Distance Up to 30 m

IR Intensity and Angle Automatically adjusted

Audible and Visual Alarm

White Light Range Up to 30 m

Visual Alarm Yes. White light alarm with adjustable flashing frequencies

Audio alarm

Yes, for three types of audible alarm (VCA and Temperature Exception)

3 preset voice alerts (one for each)

6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8

VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1

line)

Temperature Range -20°C to 150°C (-4°F to 302°F)

Temperature Accuracy ± 8°C (± 14.4°F)

Video and Audio

Main Stream

Thermal:

25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

Optical:

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

Thermal:

25 fps (704 × 576, 640 × 512, 320 × 240)

Optical:

50 Hz: 25 fps (704 × 576, 352 × 288)

60 Hz: 30 fps (704 × 480, 352 × 240
