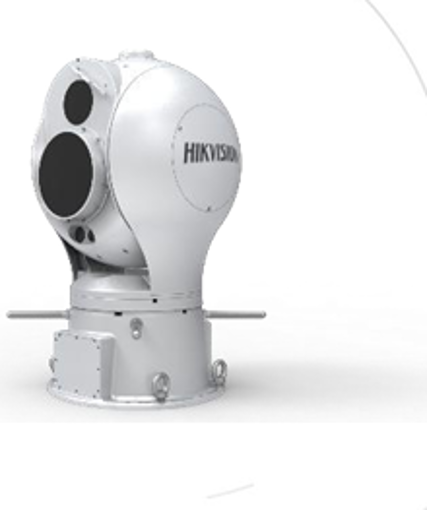

DS-2TD966A-1100ZK2FD/W

Image Sensor
Resolution
MCT Cooled Focal Plane Array
640 × 512
Pixel Pitch
NETD
Focal Length
15 μm
≤ 25 mK (@25°C, F# = 4.0)
Focus Mode
110 to 1100 mm
Motorized zoom, Motorized focus, Auto focus (10 m to infinity, full range of
temperature is clear)
Aperture
Field of View
F5.5
Wide: 5.0° × 4.0° (H × V); Tele: 0.5° × 0.4° (H × V)
Spectral Range
MRTD
3.7 μm to 4.8 μm
≤ 250 mK(25°C)
Start-up Time
Optical Module
≤ 7 minutes and 30 seconds (under 25°C)
Image Sensor
Resolution
1/1.8" Progressive Scan CMOS
1920 × 1080, 2 MP
Min. Illumination
Field of View
Color: 0.005Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON)
Wide: 31.2° × 17.8° (H × V);Tele: 0.41° × 0.23° (H × V)
Focal Length
Aperture (Range)
10 to 1000 mm, 100x
F3.0 to F11.5
Digital Zoom
Shutter Speed
× 2, × 4, × 8, × 16
1s to 1/30,000 s
WDR
Optical Defog
120 dB
Yes
Focus Mode
Semi-auto & Manual
Image Effect
Image Stabilization
Optical channel: Optical Image Stabilization (OIS)
PTZ
Movement Range
Pan Speed
Pan: 360° Continuous Rotate; Tilt: From -45° to +45°
From 0.01°/s to 120°/s
Tilt Speed
Presets
From 0.01°/s to 100°/s
300 in total, Support lens zoom and focus preset position
Patrol Scan
Pattern Scan
8
4
Power Off Memory
Scheduled Task
Yes
Preset Patrol/Linear Scan/Apple Peel Scan, scan speed is configurable
Acceleration
120°/s2
Video and Audio
Main Stream
Optical channel
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
Up to 25fps (384 × 288, 640 × 512, 704 × 576, 1280 × 720, 1280 × 960, 1920 × 1080)
Sub-stream
Video Compression
Support
H264, H265, MJPEG
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
