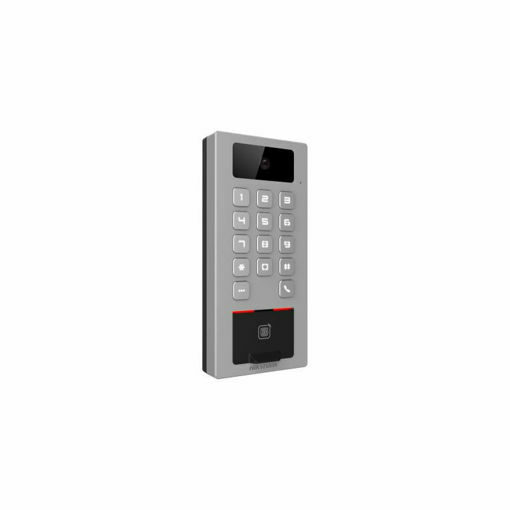

DS-K1T502DBFWX

IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, fingerprint, PIN, etc.)
Connects to external access controller via Wiegand protocol
Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
Setting the priority of wired network and wireless network is available
Setting the priority of wired network and wireless network is available
RS-485 communication for connecting external card reader and calling elevator Supports AP mode

SKU: HK-302918808

Overview
Contact Us

System:
Operating system Linux
ROM 4 GB
RAM 256 MB
CPU 960 MHz

Video:
Video compression standard H.264 and H.265

Audio:
Audio input Build-in omnidirectional microphone
Audio output Build-in loudspeaker
Volume adjustment Adjust via web or client

Network:
Network protocol
IPV4: SADP, SIP 2.0, SIP, RTSP, ISAPI (80\443 Interface), ISAPI, ISUP 5.0; IPV6: SADP,
SIP, RTSP, ISAPI (80\443 Interface), ISAPI
Wired network Support
Wi-Fi Support, 2.4 G, 802.11b/g/n
Bluetooth BT 2.1/4.2

Interface:
Network interface 1 RJ-45 10/100 Mbps self-adaptive
Lock control 1
Exit button 1
Door contact input 1
Alarm input 1
Alarm output 1
TAMPER 1
RS-485 1,RS-485 (Half duplex,HIKVISION）
Wiegand 1, Wiegand (Hik 26bit,Hik 34bit)
SD card slot

Capacity:
Fingerprint capacity 10,000
Card capacity 100,000
Event capacity 300,000

Authentication:
Fingerprint module Capacitive fingerprint recognition
Card type M1 card,DESfire card
Card reading distance 0 to 3 cm
Card reading duration ＜ 1 s
