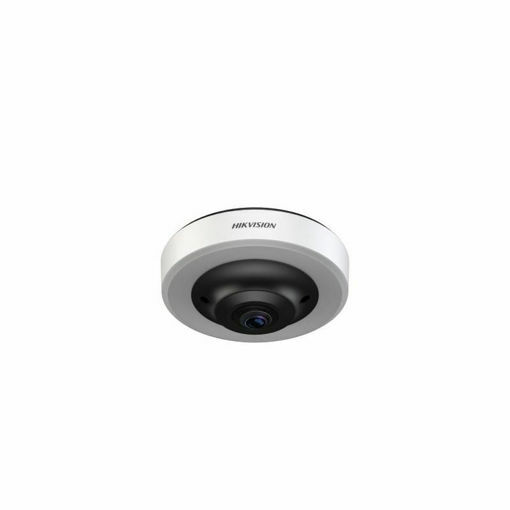

DS-TCPC06-EP

Manufacturer: Hikvision

Be the first to review this product

12 MP HD camera with max. 4000 × 3000 resolution and 15 fps frame rate in the fisheye mode

High quality imaging with 1/1.7" progressive scan CMOS. 0.04 lux low illumination with clearer imaging at night
Adopts ultra wide-angle lens for 360° monitoring
Supports multiple output modes, including the fisheye dual-channel calibration and 4-channel calibration
Supports H.265/H.264/MJPEG video encoding algorithm and multiple video quality configuration and profile settings
Supports motion detection

SKU: HK-315101295

Overview
Reviews
Contact Us

Camera

Lens

1.29 mm

Day/Night Switch

Supported

Max. Resolution

4000 × 3000

Number of Detected Parking Space

Max 16

Sensor Type

1/1.7" Progressive Scan CMOS

Min. Illumination

Color: 0.06 Lux @ (F2.2, AGC ON)

B/W: 0.04 Lux @ (F2.2, AGC ON)

Shutter

1/75 to 1/58800 s

Lens

Lens Type

1.29 mm

Aperture

1.29 mm：F2.2

Focal Length & FoV

1.29 mm, horizontal FoV: 210°, vertical FoV: 210°, diagonal FoV: 210°

Focus

Fixed


WDR

140db

Defog

supported

Main Stream

Dual-channel: 50 Hz: 8.5 fps (3840 × 1440), 60 Hz: 7.5 fps (3840 × 1440);

4-channel: 50 Hz: 8.5 fps (1920 × 1440), 60 Hz: 7.5 fps (1920 × 1440);

1-channel (with 2 windows): 50 Hz: 8.5 fps (3840 × 2880), 60 Hz: 7.5 fps (3840 × 2880);

1-channel (with 4 windows): 50 Hz: 8.5 fps (3840 × 2880), 60 Hz: 7.5 fps (3840 × 2880);

Main Stream (configurable): 1280 × 1024, 1280 × 720, 704 × 576

Sub-Stream

1920 × 1080, 640 × 480
