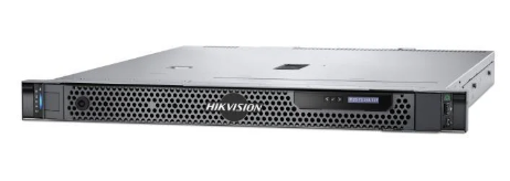

HikCentral-P-VSS-Base/HW/300Ch

Devices and Resources
Video Management
300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
Access Controls
Not included; can be expanded into 1024 (Including Doors and Outdoor Station)
Indoor Station
Not included; can be expanded into 5000
ANPR Cameras
Not included; can be expanded into 1024ch
Lanes of Entrance & Exit
Not included, can be expanded into 40
Cameras with Face Capture Function
Not included; can be expanded into 3000ch
Alarm Panel
Not included; can be expanded into 1024
Smart Walls
Not included; can be expanded into：Smart Walls：32；Decoding devices：32
Attendance
Not included, can be expanded by extra license
Hardware Specifications
CPU
E-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
Memory
Standard Config：1 × 16GB UDIMM，3200MT/s

Scalability：4 × 128GB UDIMM

Hard Disks
Standard Config：2×1TB 3.5 inch SATA HDD

Scalability：2×22TB 3.5 inch SATA/SAS HDD

Storage Controller
Standard Config：PERC H355 adaptor LP (support RAID 0/1)

Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache

Supported Operating Systems
WinSvr2019 multilingual version pre-installed
PCIe Slots
Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
Management
Remote Manage
iDrac9 Enterprise
OpenManage™ Software
Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;

Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

Security
Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
Ports
USB 3.0
0（Front）+1（Rear）
USB 2.0
1（Front）+1（Rear）
Ethernet Port
2 x LAN 10/100/1000
VGA
1
iDRAC Direct (Micro-AB USB) Port
1
iDRAC Ethernet Port
1
Manager Port
1
