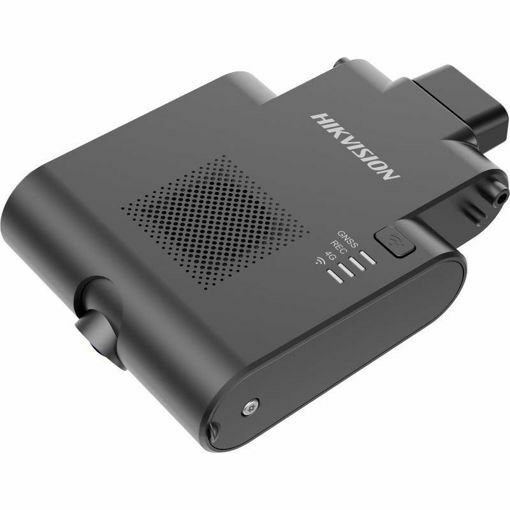

Hikvision AE-DI2032-G40

Camera
Image Sensor
1/2.7'' Progressive Scan CMOS
Shutter Speed
1/3 s to 1/100, 000 s
Min. Illumination
0.01 Lux @ (AGC ON)
Lens
Focal Length
Fixed focal lens, 2.1mm
Aperture
F2.1
Lens Mount
M12
FOV
Horizontal FOV: 127°

Vertical FOV: 73°

Diagonal FOV: 137°

Video/Audio Input
Audio Input
1-channel audio
Video Input
3-channel video (default: 1 channel; extension: 2 channels)
Encoding/Decoding Parameters
Video Compression
H.265,H.264
Audio Compression
G.711ulaw,G.711alaw,AAC
Video
Main Stream
CH1:

25fps 1080P 1920 × 1080 (default)

25fps 720P 1280 × 720

CH2~CH3:

25fps 720P 1280 × 720 (default)

Sub- Stream
CH1:

25fps 720P 1280×720

25fps 480P 640×480 (default)

CH2~CH3:

25fps 480P 640×480 (default)

Audio
Built-in Mic
Omnidirectional pickup, frequency response 50-20000 Hz
Built-in Speaker
Max 1.5 W, with adjustable volume, not less than 70 dB at 1 m distance
Wireless Network
Wi-Fi Frequency
2.4 GHz
Positioning
GPS (Global Positioning System)

GLONASS (Global Navigation Satellite System)

SNR
37.5 dB
Wide Dynamic Range
Supports WDR
Image Settings
Adjustable brightness, chroma, contrast, color saturation, and sharpness
OSD
Date, Time, GPS, Speed, etc.
Auxiliary Interface
Alarm Input
2
SIM Card Slot
1, Industry Micro SIM, Plug-in type
Interface
Power Interface
1, 8-pin BM Male Terminal
Reset Key
1, Pinhole button
RS-232
1
Wireless Transmission
Dial-up
Europe：

FDD-LTE: B1, B3, B5, B7, B8, B20

TDD-LTE: B38, B40, B41

UMTS: B1, B5, B8

GSM/GPRS/EDGE: 900/1800 MHz

Latin America :

FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B28, B66

TDD-LTE: B40

UMTS: B1, B2, B5, B8

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

Warning: The device requires industrial SIM card (MP2). The ordinary SIM card (MP1) is prohibited. We are not responsible for any problem caused by the use of any ordinary SIM card.

Wi-Fi Protocol
802.11 b/g/n
Smart Function
Driving Status Monitoring (DSM)
Phone Call,Smoking,Inattenention,Fatigue Driving, Video Occlusion, Infrared Blocking Sunglasses, Not Wearing Seat Belt
Advanced Driving Assistance System (ADAS)
Forward Collision Warning (FCW)

Pedestrian Collision Warning (PCW)

Lane Departure Warning(LDW)

Traffic Sign Recognition (TSR)

Headway Monitoring Warning (HMW)

Traffic Light Detection(TLD)

Forward Car Leaving(FCL)

General
System
Embedded Linux
Language
Currently only supports English

*The language includes APP interface language and voice reminder.

Storage
Dual TF Card (up to 512GB for each)

Class10 or above is recommended

Sensor
Six-axis G-Sensor

*Harsh acceleration, Harsh deceleration and Harsh cornering

Image Format
JPEG
Indicator
Positioning Status Indicator (GNSS)

Off: no positioning signal

Steady blue: the positioning signal is normal

Recording Status Indicator(REC)

Off: The built-in or extended camera stops / fails

Steady blue: The built-in or extended camera is recording normally

Network Status Indicator (4G)

Off: No 4G signal

Steady blue: 4G signal and the platform connection normal

Flashing blue: 4G signal normal but no platform connection

Wi-Fi Status Indicator

Off: Wi-Fi AP closed

Steady blue: Wi-Fi AP open and APP connection normal

Flashing blue: Wi-Fi AP open but no APP connection
