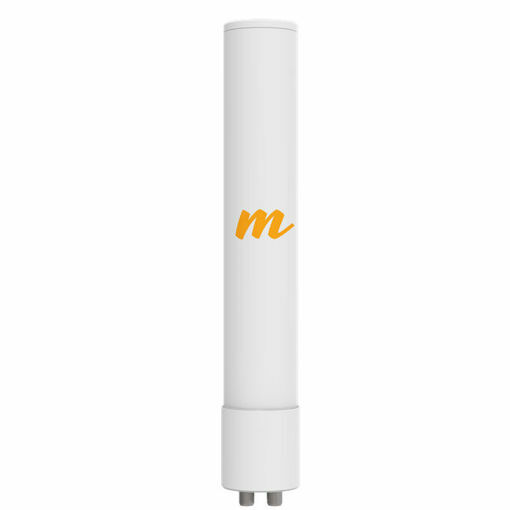

Mimosa N5 360 4.9-6.4 GHz 360 Beamforming Antenna for A5c

Manufacturer: Mimosa

Be the first to review this product

The only antenna available for use between 4,9 to 6,4 GHz
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology
Gain: 15 dBi

SKU: MM-N5 360

Delivery date: 3-5 days

Overview
Specifications
Reviews
Contact Us

The industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.

The only antenna available for use between 4,9 to 6,4 GHz, delivering incredible spectrum flexibility.
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.
Gain: 15 dBi.
RF Connectors: 4 N-type female.

Products specifications

Frequency Range	4.9-6.4GHz
Gain	15dBi
Antenna Beam	360° Antenna Beam
Antenna Type	Sector
