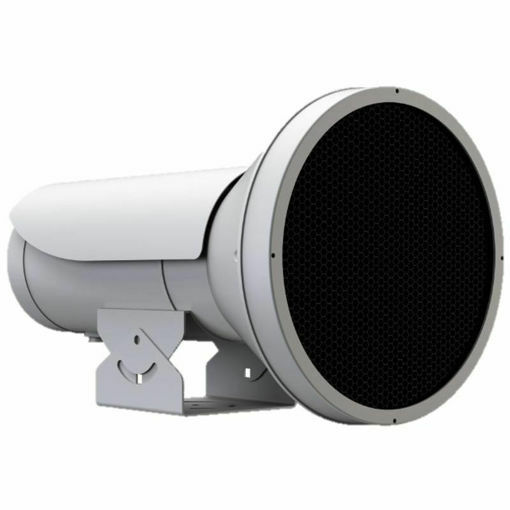

    Picture of SL-1211-1I(850nm)

    SL-1211-1I(850nm)

    Manufacturer: Hikvision
    Be the first to review this product


    Short recycling time, suitable for over-speed capture


    • With photosensitivity, it supports two levels of brightness during day and night, and the brightness value can be adjusted through RS485
    • Novel design, with manual universal joints, easy to adjust
    • Built-in grating (external grating optional), effectively reducing light pollution
    SKU: HK-305200184
    Login For Price
    Supplement Light
    Light Type IR light
    IR Wavelength ≥ 850 nm
    Angle of Light 10°
    Effective Distance 16 to 25 m
    Response Time ≤ 67 ms
    Trigger Manner TTL level (switch trigger optional)
    Trigger Level 5 to 12 V (High level trigger)
    Trigger Frequency 0.5 Hz
    Flash Energy 200 J
    Service Life ≥ 20 million Times
    Coverage 1 lane(s)
    Interface
    Flash Trigger Input 1 Flash trigger input
    RS-485 1 RS-485
    Function
    Day and Night Function Supports ambient brightness detection and auto startup at low illumination (optional)
    Brightness Control 0 to 100 levels of brightness
    Remote Control Support
    General
    Power AC 200 V to 240 V, 3.5 A, 60 W, two-core terminal block
    Material Aluminium alloy
    Dimensions 469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
    Package Dimensions 536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
    Weight Approx. 5.2 kg (11.53 lb.)
    With Package Weight Approx. 6.6 kg (14.48 lb.)
    Operating Condition -25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
    Storage Condition -25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
    Approval
    EMC
    EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN
    61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
    Safety
    CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
    CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
    Protection IP65: IEC 60529: 1989+A1: 1999+A2: 2013
    Environment
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
     Typical Application
    Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
    description to choose for your using environment.
    /Y model: This model has MODERATE PROTECTION.
    Without /Y model: This model has NO SPECIFIC PROTECTION.
    Level Description
    Top-level protection
    Hikvision products at this level are equipped for use in areas where professional anti-corrosion
    protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
    more.
    Moderate protection
    Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
    demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
    from coastlines, as well as areas affected by acid rain.
    No specific protection
    Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
    protection is needed.
