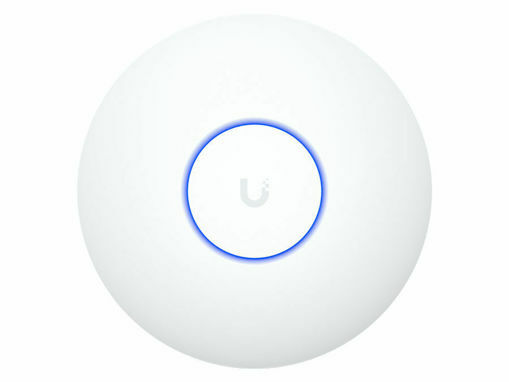

Ubiquiti UniFi AC Lite

Entry-level, ceiling-mounted WiFi 5 AP with 4 spatial streams designed for small offices.

SKU: UB-UAP AC LITE

Overview
Contact Us

Dimensions

Ø160 x 31.45 mm

(Ø6.3 x 1.2")

WiFi Standard

WiFi 5

Spatial Streams

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

250+

Uplink

GbE

Mounting

Ceiling, Wall

(Lite Mount Included)

Power Method

PoE

Performance

MIMO

5 GHz

2 x 2 (DL MU-MIMO)

2.4 GHz

2 x 2 (DL MU-MIMO)

Max. Data Rate

5 GHz

867 Mbps (BW80)

2.4 GHz

450 Mbps (BW40)

Antenna Gain

5 GHz

3 dBi

2.4 GHz

3 dBi

Max. TX Power

5 GHz

20 dBm

2.4 GHz

20 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11ac (WiFi 5)

6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
