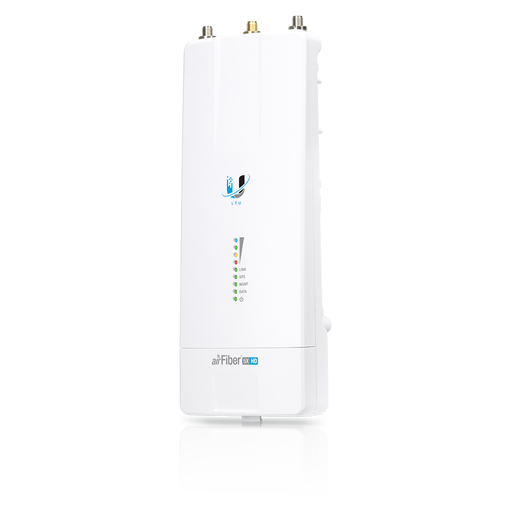

Ubiquiti airFiber 5XHD

Ubiquiti AF 5XHD is designed specifically for the wireless ISP industry from the ground floor up, the AF-5XHD’s custom LTU silicon and radio architecture provide breakthrough performance Its core communications processing engine surpasses the limitations inherent to generic Wi-Fi chips to provide low latency, long-range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity Use this to configure separate TX and RX frequencies This feature is very helpful in environments where certain channels may be experiencing interference on one end of the link, but are clear on the other end The ability to configure different channels for each end of the link provides an ideal solution to this problem 4096QAM (12x) support the AF-5XHD has been the only product that allows WISPs to push links beyond 256QAM while delivering unmatched spectral efficiency With the introduction of 4096QAM, WISPs will now be able to further increase link speeds simply by upgrading the software Link frequency selector found on the wireless screen, this feature displays a graph of the link's RF environment that includes a best frequency hint to help you select the clearest frequency Seamless frequency changes the link is no longer dropped when frequency-related settings (frequency, split frequency, alternative frequencies, auto frequency) are changed This feature simplifies and speeds up link management You now only have to manage the master device; changes made to it are automatically propagated to the remote device The new Smart Assistant monitors and alerts you of errors and warnings, such as a missing GPS signal, Ethernet negotiation failures, or a lower than expected signal strength The Smart Assistant also provides detailed troubleshooting instructions for fixing each problem that it identifies When Auto Frequency on DFS Event (Beta) is enabled, the link automatically switches to the clearest operating frequency when a DFS event occurs.

• The radio's transmit power level can be programmed up to +29 dBm.
• Offers configurable support for 2, 25, 4, and 5 ms frames.
• 5 ms frame length is compatible with airMAX networks.
• The radio can operate on different frequencies for TX and RX.
• Adaptive modulation up to 4096QAM.
• Dual redundant gigabit Ethernet Ports with PoE.
• Bluetooth Wireless Configuration.
• AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations.
• AF-5XHD is not backwards compatible with the AF5X.
