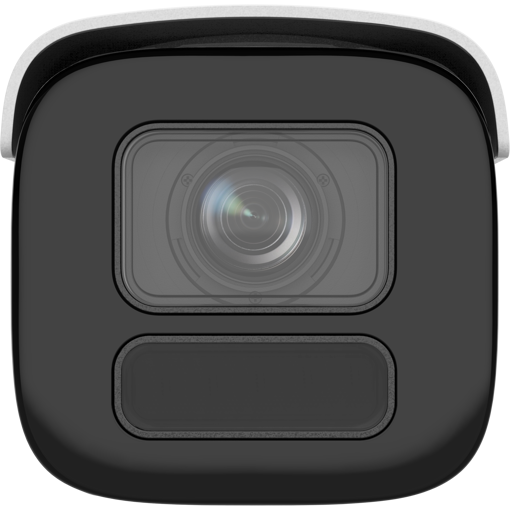

DS-2CD2646G2HT-IZS(2.8-12mm)(eF)(O-STD)

High quality imaging with 4 MP resolution

Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant IP67 and vandal proof IK08
Excellent low-light performance with powered-by-DarkFighter technology
Motorized Varifocal lens for easy installation and monitoring

SKU: HK-311324880

Overview
Contact Us

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 105.4° to 34.3°, vertical FOV 56.1° to 19.3°, diagonal FOV 125.8° to 39.4°

Lens Mount

Ø14

Iris Type

Fixed

Aperture

F1.0

Depth of Field

1 m to ∞

DORI

Wide: D: 63.4m, O: 25.2 m, R: 12.7 m, I: 6.3 m

Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 60 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
