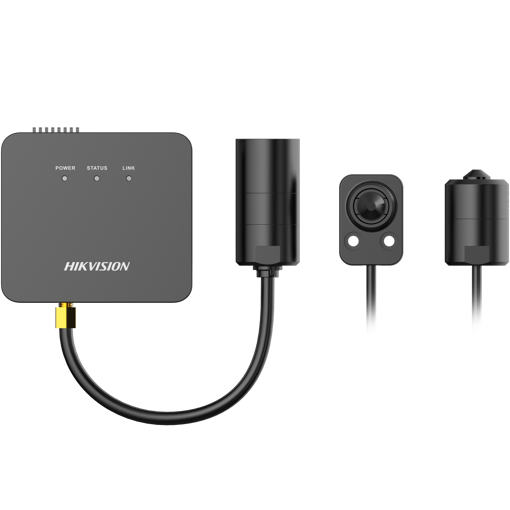

DS-2CD6425G1-10(3.7mm)2m(O-STD)

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON)
Shutter Time
1/3 s to 1/100,000 s
Lens
Focal Length & FOV
L10/L20 model:

2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°

3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°

L30 model:

2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°

4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°

Lens Mount
L10/L20: Mini

L30: M12

Iris Type
Fixed
Aperture
L10/L20:

2.8 mm: F2.5

3.7 mm: F2.5

L30:

2.8 mm: F2.0

4 mm: F2

DORI
DORI
L10/L20:

2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m

3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

L30:

2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m

4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream
50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Video Compression
Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CVR/BVR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
Support 1 fixed region for main stream
Audio
Audio Type
Mono
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz
Environment Noise Filtering
Yes
