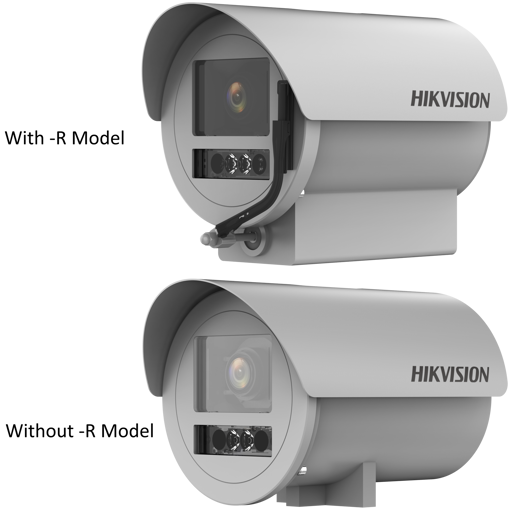

DS-2XC6686G0/P-IZHRS(8-32mm)(O-STD)

Manufacturer: Hikvision

Be the first to review this product

High quality imaging with 8 MP resolution

Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
A built-in wiper (-R) removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments

SKU: HK-311321005

Overview
Reviews
Contact Us

Camera

Image Sensor 1/1.8" Progressive Scan CMOS

Max. Resolution 3840 × 2160

Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time 1 s to 1/100,000 s

Day & Night

IR cut filter

Blue glass module to reduce ghost phenomenon

Lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 100.8° to 40.2°, vertical FOV 53.3° to 22.5°, diagnol FOV

122.3° to 46.2°

8 to 32 mm, horizonral FOV 40.7° to 14.6°, vertical FOV 22.3° to 8.3°, diagnol FOV 47.4°

to 16.7°

Focus Auto, semi-auto, manual

Aperture

2.8 to 12 mm: F1.38 to F2.5

8 to 32 mm: F1.7

DORI

Wide:

2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m

8 to 32 mm: D: 200 m, O: 79.4 m, R: 40m, I: 20 m

Tele:

2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m

8 to 32 mm: D: 580 m, O: 230 m, R: 116 m, I: 58 m

Illuminator

Supplement Light Type IR

Supplement Light Range

2.8 to 12 mm: 60 m

8 to 32 mm: 100 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
