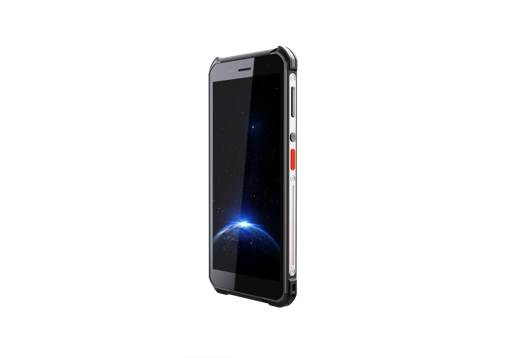

DS-MDT201/GLE

Camera
Image Sensor
Front camera: 5 MP; Fix-focus

Rear camera: 13 MP; Auto-focus

Max. Resolution
1920 × 1080
Flashing Light
Supported
Zoom
4x Digital
Lens
Focal Length
Front camera: 2.23 mm

Rear camera: 3.44 mm

FOV
Front camera: Horizontal FOV: 61.3°, Vertical FOV: 46°

Rear camera: Horizontal FOV: 67.9°, Vertical FOV: 53.7°

Aperture
Lens 1: F2.2

Lens 2: F2.2

Network and Connection
Wi-Fi Working Mode
STATION;AP
Screen
Screen Size
5.5"
Screen Type
IPS; Capacitive touch panel; multi-touch
Resolution
720 × 1440
Storage
CPU
8cores,2.0GHz
RAM
4 GB
ROM
64GB
Extended Storage
1 TF card (Max. 256 GB)
Wireless Network
Cellular Network
FDD -LTE: B1/B3/B8

TDD -LTE: B38/B39/B40/B41

Wi-Fi Protocol
802.11 a/b/g/n/ac
Wi-Fi Frequency Band
2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
Bluetooth
BT5.0
Positioning Mode
GPS
NFC
Working Frequency: 13.56 MHzProtocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.Label Standard: M1 card (S50, S70), CPU card, NFC label, etc.
Interface
Button
Side Keys Volume+,Volume-,Left Scan Key, Right Scan Key,Power Button,Function Key
SIM Card
Only available for models with /GLE /5G:2 (Nano-SIM)
Charging Interface
Type-C
USB
USB 2.0
Fingerprint Module
Not supported
General
Operating System
Android 10.0
Dimension
157 mm × 75 mm × 14 mm (6.2" × 3.0" × 0.6")
240 g (0.5 lb.)
Material
Antimicrobial casing, easy to disinfect. Blue-white, cozy for Healthcare.
Power
5 VDC, 2.0 A, max. 10 W
Client
MDM
OCR
Supported;Not supported
Vibration Motor
Supported
MIC
Supported
Speaker
1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 103dB (10 cm)
Gyroscope
Supported
G-sensor
Supported
Distance Sensor
Supported
Light Sensor
Supported
Drop Specifications
1.5 m
Sealing
IP68
Operating Condition
-10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
Electro Static Discharge (ESD)
±15KV air discharge
Battery
Battery Type
Lithium-ion battery, integral
Capacity
4900 mAh
Charging Time
≤ 4 h
Battery Duration
Standby Time > 500h
