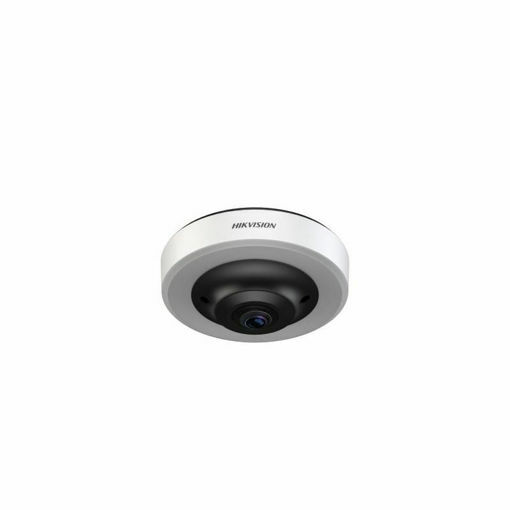

DS-TCP506-EP

Manufacturer: Hikvision

Be the first to review this product

5 MP HD camera with max. 2688 × 1944 resolution and 25 fps frame rate in the fisheye mode

High quality imaging with 1/2.7" progressive scan CMOS. 0.04 lux low illumination with clearer imaging at night
Adopts ultra wide-angle lens for 360° monitoring
Supports multiple output modes, including the fisheye dual-channel calibration and 4-channel calibration
Supports H.265/H.264/MJPEG video encoding algorithm and multiple video quality configuration and profile settings
Supports motion detection

SKU: HK-315101293

Overview
Reviews
Contact Us

Camera

Lens

1.16 mm

Day/Night Switch

Supported

Max. Resolution

2688*1944

Number of Detected Parking Space

Max 12

Sensor Type

1/2.7'' Progressive Scan CMOS

Min. Illumination

Color: 0.04 Lux @ (F2.2, AGC ON)

B/W: 0.02 Lux @ (F2.2, AGC ON)

Shutter

1/75 to 1/58800 s

Lens

Lens Type

1.16 mm

Aperture

1.16 mm：F2.25

Focal Length & FoV

1.16 mm, horizontal FoV: 190°, vertical FoV: 190°, diagonal FoV: 190°

Focus

Fixed


WDR

140db

Defog

supported

Main Stream

Dual-channel: 50 Hz: 12.5 fps (2688 × 832), 60 Hz: 15 fps (2688 × 832);

4-channel: 50 Hz: 12.5 fps (1344 × 832), 60 Hz: 15 fps (1344 × 832);

1-channel (with 2 windows): 50 Hz: 12.5 fps (2688 × 1664), 60 Hz: 15 fps (2688 × 1664);

1-channel (with 4 windows): 50 Hz: 12.5 fps (2688 × 1664), 60 Hz: 15 fps (2688 × 1664);

Main Stream: 1920 × 1080

Sub-Stream

1920 × 1080, 640 × 480
