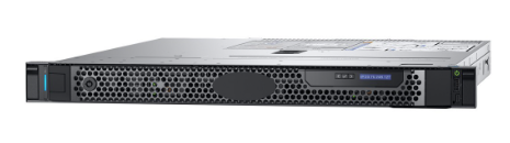

HikCentral-P-VSS-Base/HW/64Ch

Devices and Resources

Video Management

64ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)

Access Controls

Not included; can be expanded into 1024 (Including Doors and Outdoor Station)

Indoor Station

Not included; can be expanded into 5000

ANPR Cameras

Not included; can be expanded into 1024ch

Lanes of Entrance & Exit

Not included, can be expanded into 40

Cameras with Face Capture Function

Not included; can be expanded into 3000ch

Alarm Panel

Not included; can be expanded into 1024

Smart Walls

Not included; can be expandedinto：SmartWalls：32；Decoding devices：32

Attendance

Not included, can be expanded by extra license

Hardware Specifications

CPU

E-2324G×1，3.1 GHz, 8 MB Cache，4 Cores, 4 Threads

Memory

Standard Config：1 × 16GB UDIMM，3200MT/s

Scalability：4 × 128GB UDIMM

Hard Disks

Standard Config：2×1TB 3.5 inch SATA HDD

Scalability：2×22TB 3.5 inch SATA/SAS HDD

Storage Controller

StandardConfig：PERCH355 adaptor LP (support RAID 0/1)

Compatibility：IndependentSAS hardware RAID card ( support RAID 5/10 ),≥8GB cache

Supported Operating Systems

WinSvr2019 multilingual version pre-installed

PCIe Slots

Two Slots Capability：1 x X8 Semi-high Gen 4 PCle slots；1 x X8 Semi-high Gen 4 PCle slots

Management

Remote Manage

iDrac9 Enterprise

OpenManage™ Software

Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)

Integrations and Connections

Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;

Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

Security

Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)

Ports

USB 3.0

0（Front）+1（Rear）

USB 2.0

1（Front）+1（Rear）

Ethernet Port

2 x LAN 10/100/1000

VGA

1

iDRAC Direct (Micro-AB USB) Port

1

iDRAC Ethernet Port

1

Manager Port

1

General

Net Weight

12.2 kg (26.9 lb)

Gross Weight

18.5 kg (40.79 lb)

Dimension (W × H × D)

482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')

Package Dimensions (W × H × D)

595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')

Operating Temperature

10 °C to 35 °C (50 °F to 95 °F)

Storage Temperature

-40 °C to 65 °C (-40 °F to 149 °F)

Operating Humidity

8% to 80% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A

Form Factor

1U Rack
