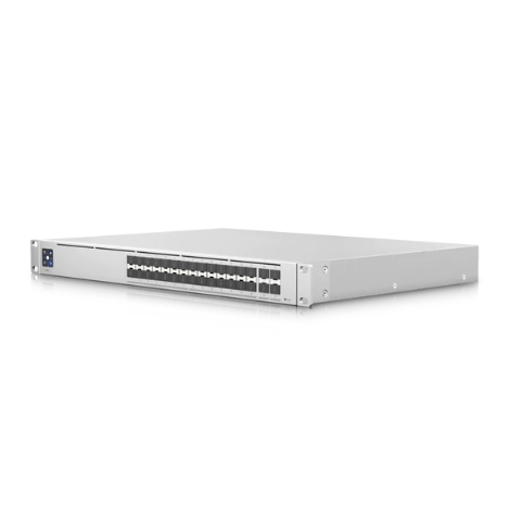

Ubiquiti - Switch Pro Aggregation

The UniFi Switch, model USW-Aggregation-Pro, is a congurable 10G ber Layer-3 switch. It offers 28 10G SFP+

ber links to your devices and 4 25G SFP28 ber uplink options to your enterprise network
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material SGCC Steel

SKU: UB-USW PRO AGGREGATION

Total Non-Blocking Throughput 380 Gbps

Switching Capacity 760 Gbps

Forwarding Rate 565.44 Mpps

Max. Power Consumption 100W

Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz

(1) USP-RPS DC input, 11.5VDC, 8.7A

Power Supply AC/DC, Internal, 100W

Networking Interfaces (28) 1/10 Gbps SFP+ Ethernet

(4) 1/10/25 Gbps SFP28 Ethernet*

*ThefourSFP28ports don't supportmixedspeedat25Gbps mode.OnceoneoftheSFP28ports is conguredat25Gbps mode,theothers will belimitedat25Gbps too.

TheSFP28ports only supportmixedspeedwhenall ports areat1Gbps or10Gbps.

LCM Display (1) 1.3" Touchscreen

Bootup Animation: Bootup in Progress

Firmware Upgrade Icon: Firmware Upgrading

Steady White: Factory Defaults, Awaiting Adoption

Steady Blue: Device is Adopted

LEDs SFP28/SFP+: White, Link and Activity

ManagementInterface EthernetIn-Band

Modes SMB Layer 3 10/25 G Fiber Switch

ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 10 - 90% Noncondensing

Certications CE, FCC, IC
